BEAR DISPOSABLE

MICROVASCULAR CLIP

Excellent Supporting Role


Temporary hemostatic clip for microvascular anastomosis.

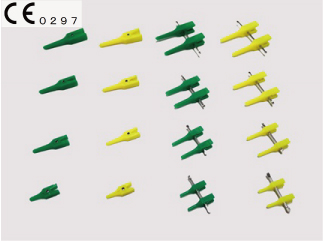

For Artery : Yellow

               Single type : 4 sizes

               Double type : 4 sizes

For Vein : Green

               Single type : 4 sizes

               Double type : 4 sizes


CE marking is under preparation.

It will be available in the beggining of next year.

This clip series was produced in 1980 by Dr. Susumu Tamai, Department of Orthopedic Surgeru, Nara Medical University, one of the pioneers of microsurgeons who succeeded in a replantation of completely cut thumb first in the world in 1965.

It was the first disposable plastic clip in the world.

In Japan, it has been widely used for more than 30 years, mainly for reconstructive microsurgery.

*Advantage of our clips

  • The flexible plastic material can make possible to clamp the blood vessel firmly even with small pressure. And it is more tissue-friendly than metallic ones, so there is almost no damage to vascular tissue.
  • There are size variations depending on whether an artery or a vein, and each blood vessel diameter (0.2 mm to 4.0 mm).
  • Single type and Double are available, the latter one is used at the case of blood vessel anastomosis.
  • As it is a single use, it can be used always in a clean state, and there is no concern that the clipping force may deteriorate or be dispersed or be dispersed like by continuous use like metalic reusable one.

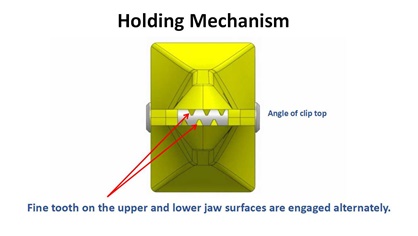

  • Fine jagged teeth are created on the upper and lower inner surfaces of the clip, and when the blood vessel is sandwiched, they are biten alternately. This can prevent the vessel from deviating from the clip.

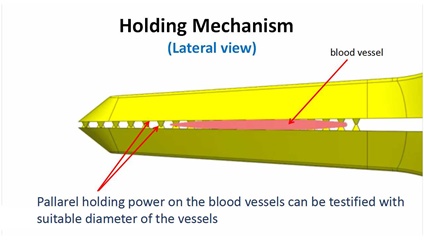

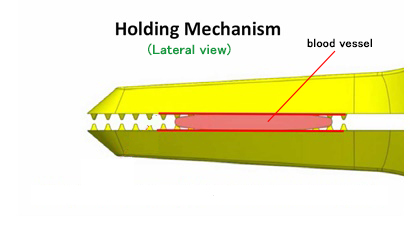

  • Clip is designed as the followings
  • When putting an outher diameter blood vessel suitable for each clip standard, the tips of the clip contact first.
  • After that, as pressure is applied, the elasticity of the clip itself uniformly applies putting force tonthe blood vessel.
